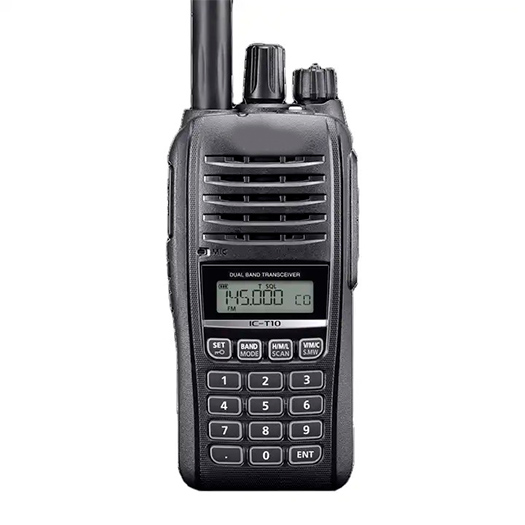

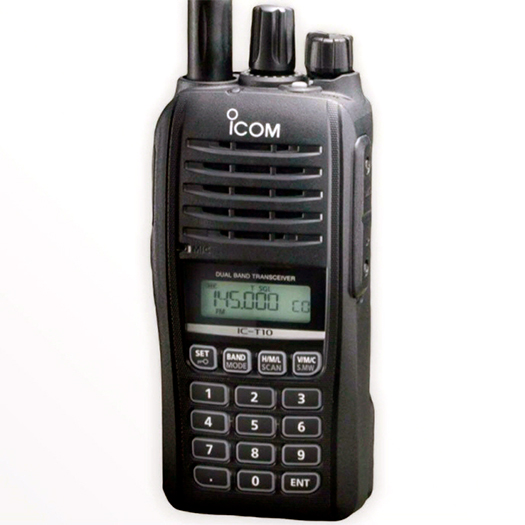

IC-T10 RADIO PORTÁTIL FM DE DOBLE BANDA VHF / UHF
Dispositivo portátil de doble banda listo para cualquier actividad de campo que tenga con escucha clara de cualquier transmisión de otros radioaficionados o del receptor de radio FM con el alto altavoz de 1500 mW. La radio presenta una construcción comercial robusta, especificación a prueba de polvo IP67 e impermeabilización.
Con el receptor de radiodifusión FM incorporado (76 – 108 MHz), se pueden recibir las emisoras de radio regionales.
5W RF Output in 144 and 430 MHz
1500 mW Loud and Intelligible Audio
IP67 Dust-tight and Waterproof
Home Button on the Top Panel for Quick Access to Calling Channel
Optional HM-222HLWP, Loud Audio SP-MIC
FM Broadcast Receiver
Up to 11 Hours* Operating Time
* 11/10 hours (VHF/UHF, approx.) with BP-280 battery at 1:1:8 duty ratio (Power save ON)
Other Features
- DC power operation with optional AD-149H
- Free CS-T10 downloadable programming software
- Built-in CTCSS/DTCS for repeater operation
- Total of 208 memory channels with 6 character channel name
- 16 DTMF autodial memories
- Priority, Program, Memory, Skip, and Tone Scan
- Direct-conversion system eliminates IF stages
General
| IC-T10 | |||
|---|---|---|---|
| Frequency coverage | USA Version | TX | 144–148, 430–450 MHz*1 (* Working range) |
| RX | 136–174, 400–479 MHz*1 (* Working range) | ||
| FM broadcast | 88–108 MHz | ||
| Export Version | TX | 136–174, 400–479 MHz*2 (Working range) | |
| RX | 136–174, 400–479 MHz*2 (Working range) | ||
| FM broadcast | 76–108 MHz | ||
| EUR Version | TX | 144–146, 430–440 MHz | |
| RX | 136–174, 400–479 MHz*3 (* Working range) | ||
| FM broadcast | 76–108 MHz | ||
| Number of channels | 208 channels (including 2 call and 6 scan edges) | ||
| Type of emission | F2D, F3E (FM) | ||
| Frequency stability | ±2.5 ppm (–20°C to +60°C on the basis of 25°C ) | ||
| Power supply requirement External DC power | 7.2 V DC nominal 10–16 V DC (with AD-149H) | ||
| Current drain (approx.) | Tx High | Less than 2.5 A | |
| Rx Max. audio | Less than 600 mA | ||
| Antenna impedance | 50 Ω (SMA) | ||
| Operating temperature range | –20°C to +60°C | ||
| Dimensions (W × H × D, Projections not included) | 52.2 × 111.8 × 30.3 mm, 2.1 × 4.4 × 1.2 in (with BP-280) | ||
| Weight (Approximate) | 278 g; 9.8 oz (with BP-280 and antenna) | ||
*1 Guaranteed range 144–148, 440–450 MHz
*2 Guaranteed range 144–148, 430–440 MHz
*3 Guaranteed range 144–146, 430–440 MHz
Transmitter
| IC-T10 | ||
|---|---|---|
| Output power | 5 W, 2.5 W, 0.5 W | |
| Max. frequency deviation | ±5.0 kHz/±2.5 kHz (W/N) | |
| Spurious emissions | Less than –60 dBc (High, Mid), Less than –13 dBm (Low) | |
| Ext. microphone connector | 3-conductor 2.5 (d) mm (1/10ʺ)/2.2 kΩ | |
RECEIVER
| IC-T10 | ||
|---|---|---|
| Receiver sensitivity | Less than 0.18 μV (at 12 dB SINAD) | |
| Squelch sensitivity | Less than 0.18 μV (at squelch threshold) | |
| Adjacent channel selectivity | More than 55 dB (FM, 25 kHz) More than 50 dB (FM Narrow, 12.5 kHz) | |
| Spurious response | More than 60 dB | |
| Audio output power (at 5% distortion, 8 Ω load) | Internal SP | 1500 mW (typical) |
| External SP | 450 mW (typical) | |
| HM-222HLWP | 1500 mW (typical) | |
| Ext. speaker connector | 3-conductor 3.5 (d) mm (1/8ʺ)/8 Ω | |
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
| Ingress Protection Standard | |
|---|---|
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
Supplied Accessories
- BP-280 Battery Pack
- FA-S270C Antenna
- MB-133 Belt Clip
- BC-213 Rapid Charger
- AC Adapter (BC-242 or BC-123SA/SE)
